2L CE Approved Jacketed Glass Reactor with 0.098 Mpa Vacuum for Chemical Testing Research

Product Categories

Nantong Sanjing Chemglass Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

2L CE Approved Jacketed Glass Reactor with 0.098 Mpa Vacuum for Chemical Testing Research

Name: 2L CE Approved Jacketed Glass Reactor with 0098 Mpa Vacuum for Chemical Testing Research
Brand: NTSJ
Price: 860 USD

China 2L CE Approved Jacketed Glass Reactor with 0.098 Mpa Vacuum for Chemical Testing Research factory

Brand Name : NTSJ

Place of Origin : China

Model Number : NTSJ-PGR-2

MOQ : 1

Price : $860-880

Volume : 2L

Material : G3.3 High Borosilicate Glass

Seal method : Mechnaical Seal

Heating method : Thermal Oil

Vacuum Degree : 0.098 Mpa

Vessel Height : 950mm

Motor Power : 40w

Rotation Speed : 50-1400 rpm

Torque : 0.27 Nm

Power Voltage : 220V

Inner Vessel Diameter : 150mm

Outer Vessel Diameter : 200mm

Cover Diameter : 150mm

Neck No. on Cover : 4

Stirring Paddle Material : Stainless steel wrapped Teflon

Contact Now

Product Description

2L CE Approved laboratory Explosion-proof Jacketed chemical lab equipment

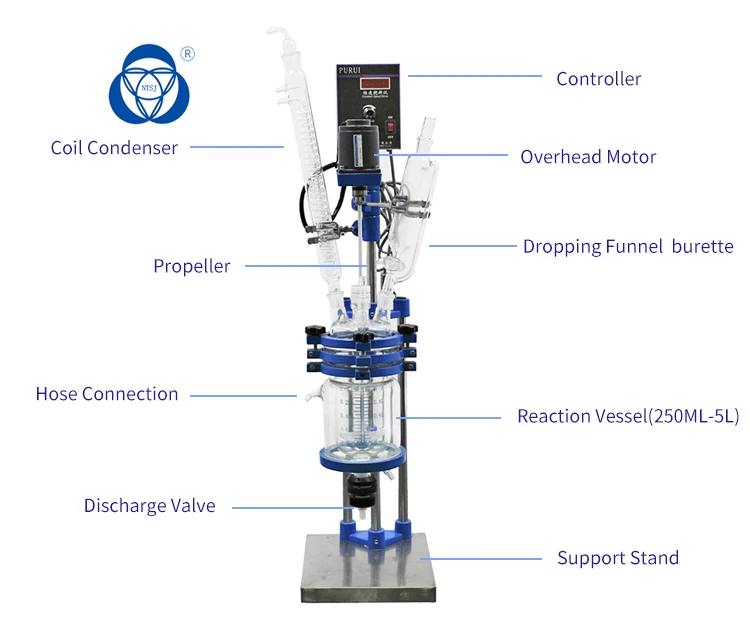

Glass reactor is with double glass design,the inner layer placed reaction solvent can do the mixing raction,the outer layer can be added with the different hot and cold sources(frozen liquid,hot oil)to do loop cooling or heating reaction,Under the conditions of constant temperature setting,the mixing reaction can be carried on inside the sealted glass reactor according to requirments under the conditions of atmospheric pressure or negative pressure,and the dripping,reflux and distillation and stirring etc can also be done.

2L CE Approved Jacketed Glass Reactor with 0.098 Mpa Vacuum for Chemical Testing Research

Model	PGR-3	PGR-20	PGR-50	PGR-80	PGR-100	PGR-200
Volume(L)	3	20	50	80	100	200
Neck No.on Cover	4	6	6	6	6	6
External Diameter of inner veesel(mm)	150	290	365	410	460	600
External Diameter of outer veesel(mm)	200	330	410	460	500	650
Cover Diameter	150	265	265	340	340	340
Vessel Height(mm)	300	850	850	950	950	1200
Motor Power(w)	40	40	140	250	250	750
Vacuum Degree(Mpa)	0.098	0.098	0.098	0.098	0.098	0.098
Rotation Speed(rpm)	50-1400	50-600	50-600	50-600	50-600	50-600
Torque(Nm)	0.27	2.23	2.23	3.98	3.98	6.37
Power(V)	220	220	220	220	220	220

MORE DETAILES,LEASE CLICK HERE.

Main Features

1. Frequency control, geared motor, constant speed, no brush, no spark, safe and stable, can work continuously.
2. The complete glass is made of high borosilicate glass GG17 3.3, which has good chemical and physical properties.
3. The overall stainless steel column mobile frame structure, six reactor lids. The large mouth design is easy to clean, and the standard port socket can be equipped with a distillation synthesis device such as reflow, liquid addition and temperature measurement.
4. Stainless steel wrapped Teflon paddle for mixing and mixing of low to high viscosity liquids.
5. Lower flange of the discharge port and PTFE valve, there is no dead angle in the container, and the material can be removed and discharged to facilitate the quick and quick discharge of solid materials.
6. Alloy steel mechanical seal, Teflon joint, keep high precision seal under working condition.
7. PT100 sensor probe has high temperature measurement accuracy and small error.

Detailed Images

Machine Parts

Name: VESSEL

Brand: NTSJ

Original: CHINA

Vessel is made of 3.3 borosillicate glass,

0.25L-200L is optional.

Main Features

Name: PT-100 THERMOMETER
Brand: NTSJ
Original: CHINA
PT100 sensor probe has high measurement accuracy,

less error and is hard to be broken,improved the

working efficiency.

PTFE coated outside without pollution,the anti-corrosion

effect is excellent.

Machine Parts

Name: RECEIVING FLASK
Brand: NTSJ
Original: CHINA
Adopt 3.3 borosilicate glass,flange type connector,

the bottom discharge valve can discharge material

continuously,1L-100L is optional.

Main Features

Name: CONDENSER
Brand: NTSJ
Original: CHINA
Efficient coil condenser is made of 3.3 borosilicate

glass,0.3m²-3m² is optional.
